ELM327 V1.5 Aluminum USB COM OBDII Diagnostic Scanner Tool

Description

This USB Tool is the latest PC-based scan tool. It supports all OBD-II protocols and is dispatched with a number of compatible programs. OBD-II Software for ELM327 USB is a free program that allows you to use your PC and a hardware interface to get the information from your car’s computer.

Features:

• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
• Clear trouble codes and turn off the MIL (“Check Engine” light).
• Data graphing and logging.
• Work with most Volkswagen, Seat, Skoda and Audi models built in 1998-2006.10
• Display current sensor data, including:
  • Engine RPM
  • Calculated Load Value
  • Coolant Temperature
  • Fuel System Status
  • Vehicle Speed
  • Short Term Fuel Trim
  • Long Term Fuel Trim
  • Intake Manifold Pressure
  • Timing Advance
  • Intake Air Temperature
  • Air Flow Rate
  • Absolute Throttle Position
  • Oxygen sensor voltages/associated short term fuel trims
  • Fuel System status
  • Fuel Pressure

OBD-II Protocols:

• ISO15765-4 (CAN)
• ISO14230-4 (KWP2000)
• ISO9141-2
• J1850 VPW
• J1850 PWM

Compatibility:

• Works with OBD-II complaint vehicles.
• Supported software compatible with Windows (not include win8), OSX, Linux, and DOS.

Specifications:

• Processor: ELM327 USB
• Output protocol: RS232
• Baud rate: 9600 or 38400
• Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power
• Operating voltage: 12V, internal protection from short circuits/overvoltages
• Item size: 7.4 * 7 * 2.5cm
• Item weight: 103g
• Total weight: 295g

Available Cars:

• Benz 2001/02/03 W203 C200K (ISO)
• BMW X5 2002 (ISO) Chevrolet Aveo (ISO)
• Citroen C3 2004 (ISO) Daihatsu YRV 2005 (ISO)
• Daihatsu YRV Turbo 2006 (ISO)
• Fiat Tipo 2002 (ISO)
• Ford New Focus 2006(CAN)
• Honda Accord 2006 JDM (ISO)
• Honda Accord Euro R 2004 JDM (ISO)
• Honda City GD8 (ISO)
• Honda Civic ES 1.6A (ISO)
• Honda Integra Type R DC5 JDM (ISO)
• Honda Jazz 1.4M (ISO)
• Hyundai Accent 2004 (ISO)
• Hyundai Getz 1.3A 2004 (ISO)
• Hyundai Getz 1.6M 2004 (ISO)
• Hyundai Matrix 2004 (ISO)
• Hyundai Santa Fe 2.4A (ISO)
• Hyundai Sonata GLS (ISO)
• Hyundai Sonata 2005 (ISO)
• Hyundai Tuscani FX (ISO)
• Kia Carens 2005 (ISO)
• Kia Magentis 2005 (ISO)
• Kia Rio LS (ISO)
• Kia Sorento SUV 2005 (ISO)
• Lexus es300 Mazda 2 (CAN)
• Mazda 5 (CAN)
• Mazda 6 (CAN)
• Mazda Premacy 2001 (ISO)
• Mazda RX8 (CAN)
• Mitsubishi Colt 2003 (ISO)
• Mitsubishi Colt Plus 2005 (ISO)
• Mitsubishi Eclipse(GST—–Turbo Car can be tested for the year 1995-2000, RS/GS—-1994-1996 GS all can do;Turbo Car for the year 1996-2000, only have speed and TPS, can clear the DTCS)
• Mitsubishi Lancer Evolution IX 2006 (ISO)
• Mitsubishi Pajero 3.5 V6 2006 (ISO)
• Nissan Sunny B14 (ISO)
• Nissan Sunny VIP FB15 (ISO)
• Nissan X-Trail 2.0L 2004 (ISO)
• Nissan X-Trail 2.5L 2004 (ISO)
• Peugeot 206 2001 –Only can show RPM
• Peugeot 206 (ISO)
• Peugeot 307 (ISO)
• Peugeot 407 (ISO)
• Renault Megane II 2005 (ISO)
• Renault Kangoo 2006 (ISO)
• Subaru Impreza 1.6TS 2002 (ISO)
• Subaru Impreza WRX 2005 (ISO)
• Toyota Camry 2.0A 2004 (ISO)
• Toyota Camry 2.4A 2005 (ISO)
• Toyota Corolla Altis 1.6A 2005 (ISO)
• Toyota Corolla GLXi G8 1999 (ISO)
• Toyota Corolla G9 2002 (ISO)
• Toyota Vios 2004 (ISO)

 Package included:

• 1 x ELM327 Main Unit

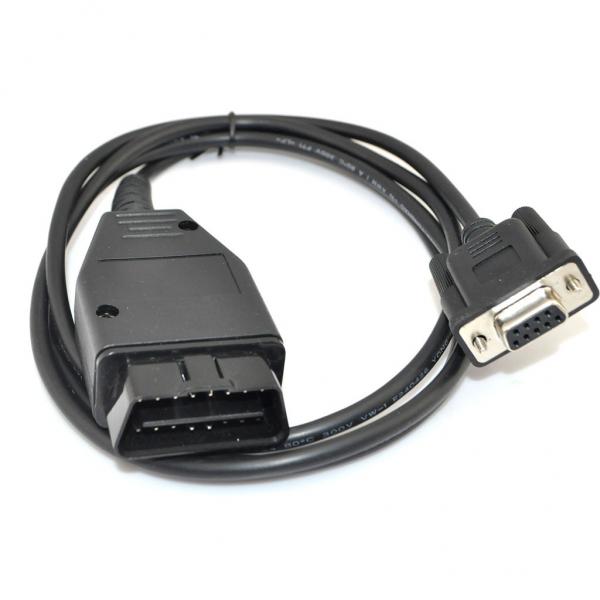

• 1 x Com Interface Cable 1.5M (5FT)
• 1 x USB Interface Cable 1.5M (5FT)
• 1 x CD Software
