Description

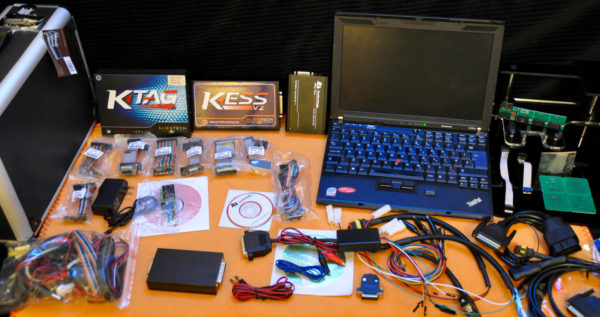

Remapping Auto Tuning BDM laptop with the ultimate setup Kess v2 Master, K-TAG and FG-Tech
You are buying:
| Item | Details | Quantity |
| DELL Refurb | 3 months warranty | New battery, 2GB ram, 160GB Hard Drive, Intel Dual core 2 Duo | 1 |
| FGTech Galletto 4 Master | 0 | |
| BDM Frame | NEW | with 12 months warranty | 1 |
| K-TAG ECU Programming Tool | NEW | with 12 months warranty | 1 |
| Brand new Aluminum case everything fits inside | 36 month warranty for the tool case | 1 |
FGTech Galletto 4 Master
FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, is easy to use. Our system comes furnished complete with all Car, Truck, Motorbike, Marine, BDM MPCxx , BDM Boot Mode, checksum.
no longer included
Very powerful tool, when combined with Delphi DS150E running the latest 2014.3 software, giving the user an extensive list of funtions on almost all car trucks and Vans.
V54 FGTech Galletto 4 Boot Mode System
– NEW JTAG – BDM – MOTOROLA – FREESCALE – INFINEON
– Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 – Mair 8GMF
– New Delphy DCM3.5xx DCM3.7xx TRW
– Motorola Freescale MPC 555/556/561/562/563/564/565
– Motorola MC 68332 – MC YQQCU – MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
– Motorola MC 68376 Campi 01 Lamborghini – Lotus
– Motorola MC 68336 MEMS D5 ROVER
– Motorola ZC 439615 – ZC 439507 IAW FIAT – VAG
– New Line OBD protocols VPM GM – Hummer-Corvette-Munstang-Blazer-Cadilac
– New Line OBD protocols Tx-Rx – Subaru – Mitsubischi – Hitachi – Denso ecu
no longer included
V54 FGTech Galletto 4 Automatic Checksum
– All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
– Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens
– Motorola MC68332 – MCYQQCU – MC68377, MC68376, MC68336, ZC439615, ZC439507
– Motorola Freescale MPC 555/556/561/562/563/564/565
– Freescale MPC 5553/5554/5565/5566
– BDM
– 5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
– Can Bus V2.0 50Kb > 1000Kb
– J1850 VPW PWM GM -FORD
– Rx Tx RS232,
– RS 485,
– Automatic setup Pull up K-L line 250, 500, 1000 ohm,
– Automatic setup termination Can bus 0, 60,120 ohm,
no longer included
FGTech Galletto 4 Master Version
FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, is easy to use. Our system comes furnished complete with all Car, Truck, Motorbike, Marine, BDM MPCxx , BDM Boot Mode, checksum.
– Recovery Mode Complete
– Funzione scan tool per eliminare i DTC
– Function scan tool for erase the DTC
– Controllo tensione di batteria auto in tempo reale
– Check tension of battery car in real time
no longer included
FGTech Galletto V54 Package List:
| Item | Quantity |
| New Version Main Interface | 1 Piece |
| ECU Cable for Boot | 1 Piece |
| Adapter for BDM to CMD with BDM Cables | 1 Piece |
| BDM Adapters | 3 Pieces |
| BDM Connectors | 6 Pieces |
| Power Cable | 2 Pieces |
| OBD2 Cable | 1 Piece |
| USB Cable (1.5meter) | 1 Piece |
K-TAG ECU Programming Tool
The new K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and Bootloader Mitsubishi/Infineon Tricore/ST communication lines into a single product.
K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.
Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported by K-TAG. no longer included
- Software Version: V2.13
- Hardware Version: 6.070
- Available Protocols for K-TAG: BDM MOTOROLA MPC5xx
- Support BDM Function Well
- Multi-Language: English, Italian, German, French, Portuguese, Spanish
Please Note:
- Please don’t try to update the KTAG, or it will damage the tool.
- IT CAN TAKE UP TO 7 DAYS FOR YOUR PARCEL TO ARRIVE PLEASE BE PATIENT
- K-TAG ECU Programming Tool has Total 500 Tokens, when you use it up, need to buy Jlink with Ktag CPU Repair Chip to reprogram and get another 500 Tokens.
- FG TECH no longer included
- all the tools are after market copy units not supported by official site.
