Toyota Intelligent Tester 2 – Dealer Level Diagnostic Tool for Toyota & Lexus

The Toyota Intelligent Tester 2 is a dealer-level diagnostic tool designed specifically for Toyota and Lexus vehicles manufactured from 1996 onwards. Used by professional workshops worldwide, the Toyota Intelligent Tester 2 delivers OEM-accurate diagnostics, ECU communication, and advanced system testing identical to official dealership equipment.

With full DST-2 support, CAN-BUS communication, immobiliser initialisation, and live data monitoring, the Toyota Intelligent Tester 2 is the ideal solution for technicians who require reliable Toyota and Lexus diagnostics without compromise.

---

Key Functions of the Toyota Intelligent Tester 2

• Complete Toyota & Lexus Coverage

  • Supports all Toyota and Lexus vehicles from 1996 onwards

  • Fully OBD-II compatible

  • Designed for professional and dealer-level diagnostics

• Dealer-Level Diagnostic Capabilities

  • Read and clear diagnostic trouble codes

  • Live data stream and ECU data monitoring

  • Active tests and component actuation

  • Immobiliser initialization and reset functions

• DST-2 Diagnostic System for Toyota & Lexus

  • DENSO Diagnostic Tester-2 protocol support

  • Diagnose engine, ABS, and airbag (SRS) systems

  • Accurate ECU communication via CAN and ISO9141

---

Toyota Intelligent Tester 2 CAN-BUS Communication

The Toyota Intelligent Tester 2 features advanced CAN-BUS communication, delivering diagnostics up to 50 times faster than conventional protocols. This ensures stable, high-speed data transfer and precise fault detection across all supported Toyota and Lexus models.

---

Built-In Voltmeter and Oscilloscope Diagnostics

Unlike standard scan tools, the Toyota Intelligent Tester 2 includes an integrated voltmeter and oscilloscope, allowing technicians to:

• Analyse real-time electrical signals

• Detect sensor and wiring faults

• Diagnose ECU signal abnormalities

• Perform communication-based and electrical diagnostics in one unit

---

Touchscreen Display and Easy Operation

• 5.7-inch full-colour LCD touchscreen

• Touch input via finger or stylus

• Simple menu navigation for workshop efficiency

• Physical function keys for quick access

• Built-in clock with timestamped diagnostics

The Toyota Intelligent Tester 2 is built for daily professional use in busy workshop environments.

---

Toyota Intelligent Tester 2 Technical Specifications

Power & Hardware

• Dimensions: 49 × 39 × 16 cm

• Input Voltage: DC 10–32V

• Power Consumption: 7W (12V DC)

• Charging Power: 10W (12V DC)

• Backup Battery: 7.4V 1000mAh Lithium-Ion

Operating Environment

• Operating Temperature: 0°C to 45°C

• Storage Temperature: -10°C to 60°C

Connectivity & Communication

• Vehicle Protocols: CAN, ISO9141

• USB Host: 1 Channel

• CF Card Slot: 1 Channel

• Serial Port: RS-232C

---

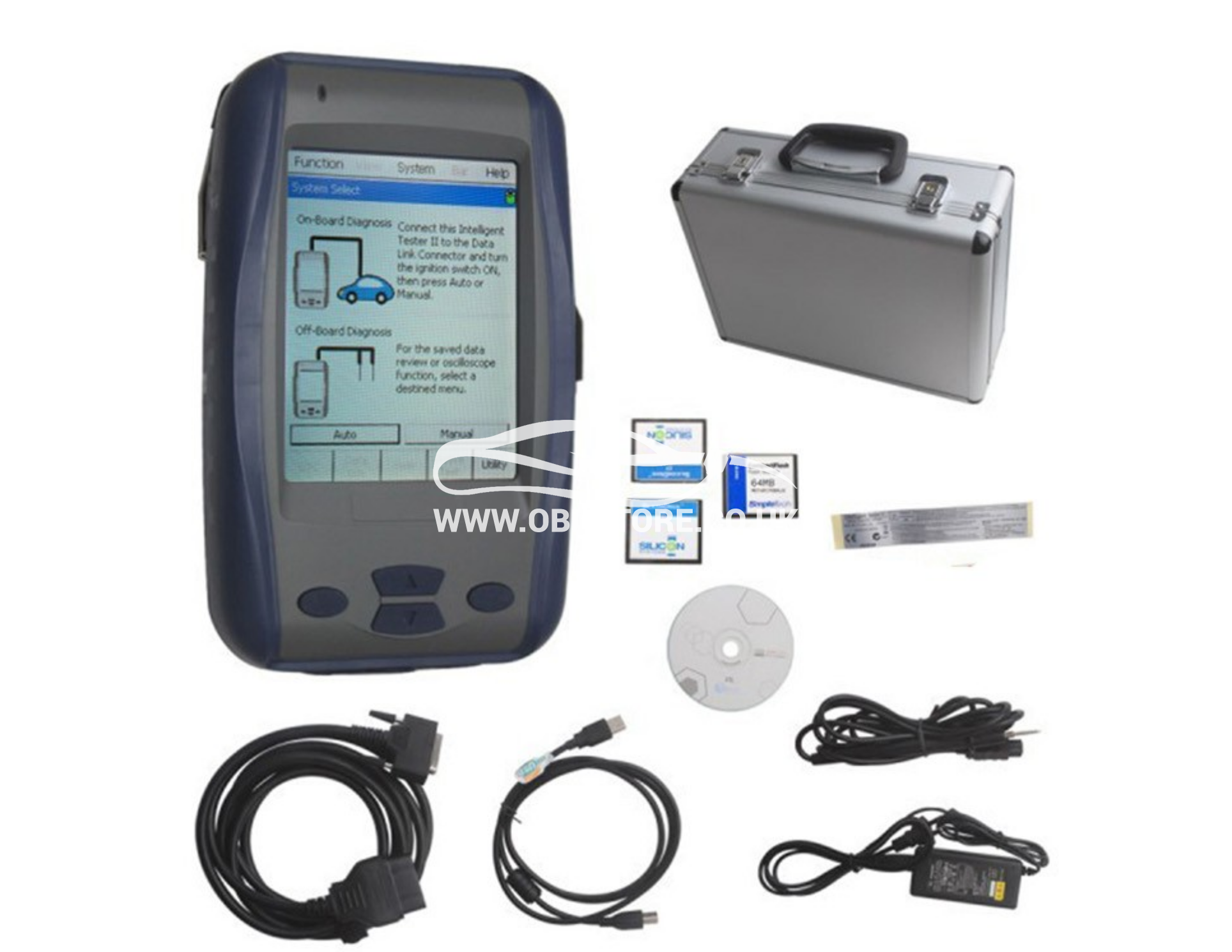

Toyota Intelligent Tester 2 Package Contents

• 1 × Toyota Intelligent Tester 2 Main Unit

• 1 × OBD-II Diagnostic Cable

• 1 × Charging Cable

• 1 × LIN Communication Cable

• 2 × Multimeter Measuring Leads

• 3 × CF / Data Cards

---

Who Should Use the Toyota Intelligent Tester 2

• Toyota and Lexus specialist workshops

• Independent garages offering dealer-level diagnostics

• Auto electricians

• Professional diagnostic technicians
